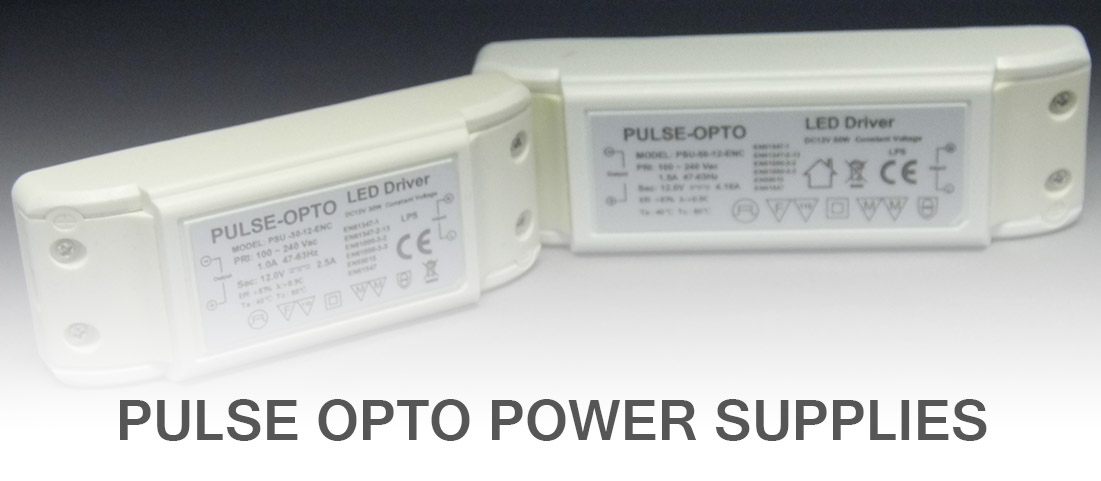

Pulse OPTO Drivers

[et_pb_section admin_label=”section”][et_pb_row admin_label=”row”][et_pb_column type=”4_4″][et_pb_image admin_label=”Pulse OPTO PSU Image” src=”http://www.pulselighting.co.uk/wp-content/uploads/2016/09/PoptoPSU.jpg” alt=”Pulse Opto Power Supplies” show_in_lightbox=”off” url_new_window=”off” animation=”fade_in” sticky=”off” align=”center” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”on” border_color=”#dddddd” border_style=”inset” border_width=”3px” use_overlay=”off”] [/et_pb_image][et_pb_text admin_label=”POPTO Driver Text” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid” custom_padding=”20px|||”]

Pulse OPTO’s LED Drivers are an excellent option for shop fitters. These power supplies are fire rated and can be used in public areas. The design makes them ideal for mounting in discrete places. Each driver includes a ‘hiccup mode’ in case of an overload, making them extremely safe.

[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row admin_label=”Row”][et_pb_column type=”1_2″][et_pb_image admin_label=”30W Pulse OPTO Driver” src=”http://www.pulselighting.co.uk/wp-content/uploads/2016/09/30Popto550.jpg” alt=”30W Pulse OPTO Driver” title_text=”30W Pulse OPTO Driver” show_in_lightbox=”off” url_new_window=”off” animation=”fade_in” sticky=”off” align=”center” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid” use_overlay=”off”] [/et_pb_image][et_pb_text admin_label=”30W POPTO Spec” background_layout=”light” text_orientation=”center” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]

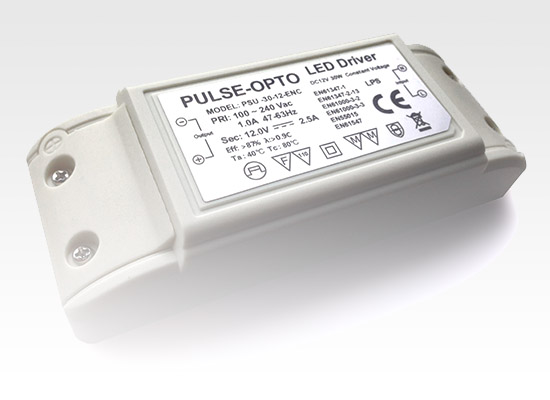

30W PSU Specifications:
Power: 30W
Voltage: 100V ~ 240V
Current: 2.5A
Frequency Range: 50 – 60Hz
Power Factor: 95
Overload: >110% rated output in hiccup mode
Short Circuit: 110% – 115% in hiccup mode
Warranty: 3 Years
Dimensions: 114x44x27mm
Operating Temperature: Operating: 0 ~ +40˚C
Product Code: PSU-PO-30-12

[/et_pb_text][/et_pb_column][et_pb_column type=”1_2″][et_pb_image admin_label=”50W Pulse OPTO Driver” src=”http://www.pulselighting.co.uk/wp-content/uploads/2016/09/50Popto550.jpg” alt=”50W Pulse OPTO Driver” title_text=”50W Pulse OPTO Driver” show_in_lightbox=”off” url_new_window=”off” animation=”fade_in” sticky=”off” align=”center” force_fullwidth=”off” always_center_on_mobile=”on” use_border_color=”off” border_color=”#ffffff” border_style=”solid” use_overlay=”off”] [/et_pb_image][et_pb_text admin_label=”50W POPTO Spec” background_layout=”light” text_orientation=”left” use_border_color=”off” border_color=”#ffffff” border_style=”solid”]

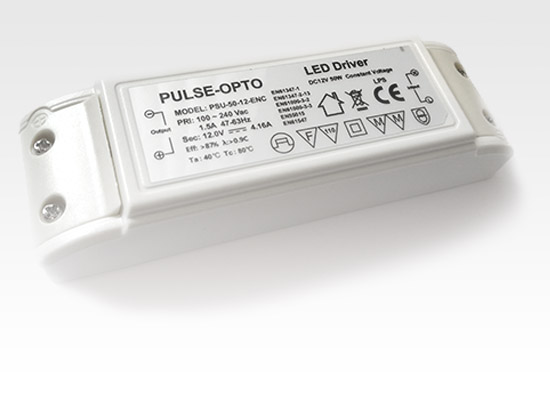

50W PSU Specifications:
Power: 50W
Voltage: 100V ~ 240V
Current: 4.1A
Frequency Range: 50 – 60Hz
Power Factor: 95
Overload: >110% rated output in hiccup mode
Short Circuit: 110% – 115% in hiccup mode
Warranty: 3 Years
Dimensions: 139x45x29mm
Operating Temperature: Operating: 0 ~ +40˚C
Product Code: PSU-PO-50-12

[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section]
